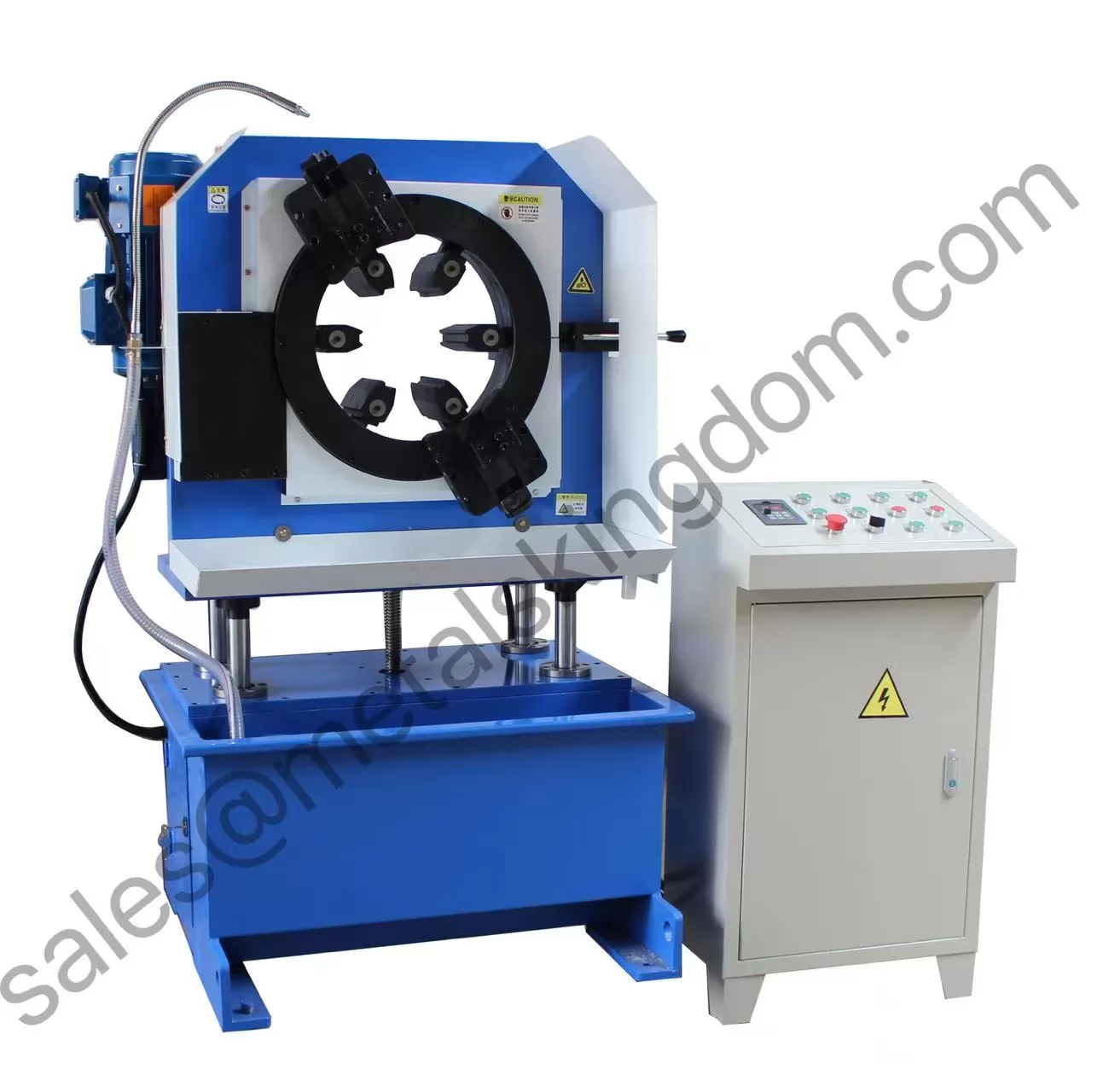

CDM-406 Stationary Pipeline Cutting Beveling Machine

    Main Technical Parameters of CDM-406
    Model: CDM-406
    Cutting range: 219-406 mm
    Center height of the body: 880-1130 mm
    Main motor power: 5.5KW
    Lifting method and lifting motor power: Automatic/0.75KW
    Clamping method and clamping motor power: Hydraulic 8-claw centering/2.2KW
    Cooling method and water pump motor power: Circulating water cooling/90W
    Cutter head speed: 0-22r/min
    Maximum cutting wall thickness: ≤25mm
    Feed method/quantity: Mechanical automatic feed/0.07mm/r
    Input power supply: AC380V/50HZ
    Bevel form: V/I/U/ Dual V type
    Cutter retraction method: Manual tool retraction/mechanical automatic tool retraction
    Cutting the shortest length: 350mm


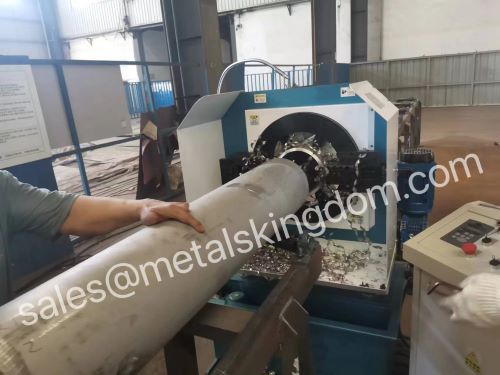

1.Equipment principle:

The pipe is clamped in place, the cutterhead rotates, and a mechanical ratchet is used for cutting; During processing, the pipe is clamped with self centering at multiple points around the circumference, and the cutterhead rotates along the outer diameter of the pipe. The cutting is inserted layer by layer until the processing is completed. After processing, the pipe is not deformed, and the surface of the straight or bevel is smooth, with good verticality of the end face, which can be directly used for welding.



2.Processing capability:

Single feed completion of cutting + synchronous completion of beveling processing.



3. Performance characteristics:

1) Used for standard bevel machining of pipeline end faces, and can also be used for cutting and bevel machining of the middle position of pipelines.

2) After cutting, it can be directly welded, with high surface smoothness and no deformation during processing.

3) Rotary cold cutting, rotating blades cut along the periphery of the pipeline, with good cutting effect and vertical end face.

4) Can be used to process any pipe, such as carbon steel, stainless steel, alloy steel, etc.

5) Adopting multi-point circumferential clamping effectively avoids pipeline clamping deformation.

6) The main body of the cutting and beveling machine can be lifted and lowered to meet the adjustment of the center elevation during the processing of pipes with different diameters. The operation is simple and convenient to use.

7) Compact in structure, lightweight, and easy to carry, it can be used for fixed use in the workshop or for on-site processing.



4. Equipment configuration

Basic configuration

Machine head

Cutter head variable frequency speed control system

Elevator base

Electric or hydraulic clamping system

Circulating water cooling system

Pipe conveying roller conveyor (optional components, input end length

 is selected according to the length of the raw material pipe,

and output end length is selected according to the length after cutting.

There are two options for manual or electric drive)



5.Technical Parameter

Model

CDM-406

Cutting range

219-406 mm

Center height of the body

880-1130 mm

Main motor power

5.5KW

Lifting method and lifting motor power

Automatic

0.75KW

Clamping method and clamping motor power

Hydraulic 8-claw centering

2.2KW

Cooling method and water pump motor power

Circulating water cooling

90w

Cutter head speed

0-22r/min

Maximum cutting wall thickness

≤25mm

Feed method/quantity

Mechanical automatic feed/0.07mm/r

Input power supply

AC380V/50HZ

Bevel form

V/I/U/ Dual V type

Cutter retraction method

Manual tool retraction/mechanical automatic tool retraction

Cutting the shortest length

350mm

Processing capability

Multiple feed completion cutting+single bevel/or double bevel

Quantity of cutting tools participating in processing simultaneously

1 or 2

Applicable materials

Carbon steel, alloy steel, stainless steel, low-temperature steel,

heat-resistant steel, etc


6. Selection parameters

           Model

Parameter

CDM-168

CDM-325

CDM-406

CDM-508

CDM-610

CDM-711

CDM-813

CDM-914

Applicable pipe diameter(mm)

Φ30-168

Φ80-325

Φ219-406

Φ325-508

Φ406-610

Φ508-711

Φ610-813

Φ711-914

Cutter head speed(rpm)

Continuously variable speed

0-40

0-30

0-22

0-20

0-17

0-15

0-10

0-8

Main motor power(KW)

2.2

3.0

5.5

5.5

7.5

7.5

7.5

7.5

Clamping method

4-claw

centering

6-claw

centering

8-claw centering

Clamping drive

Electric or hydraulic

Hydraulic

Main lifting method

Electric

Maximum wall thickness(mm)

5-25

Cold cutting method

Circulating water cooling

Feed rate

0.07mm/r

Bevel type

V/I/U/ Dual V type (standard with 30 ° V type)

Feed method

Rotary radial automatic feed

Applicable materials

Carbon steel, alloy steel, stainless steel, low-temperature steel, heat-resistant steel, etc

Input power supply

 AC 380V  50Hz
